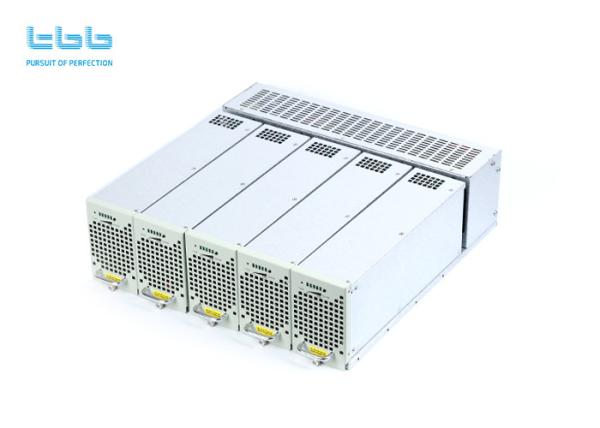

    9Kva 48vdc To 220vac Inverter N+1 Power Inverter N+1 Redundant Configuration

    Ask Lasest Price
    Brand Name : TBB
    Model Number : TM252SX6
    Certification : CE,ISO9000
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 1-3days depends on batch order qty
    • Product Details
    • Company Profile

    9Kva 48vdc To 220vac Inverter N+1 Power Inverter N+1 Redundant Configuration

    48Vdc input 220Vac/50Hz 9Kva Inverter module system Power Inverter

    Combined with modern semiconductors with high switching frequencies technology, TM250 inverter module features compact construction, low weight and high efficiency. TM250 inverter is able to run in parallel supporting hot plug, of which is suitable to compose small or medium modular inverter system (STM250, HTM250 or XTM250)


    • Working mode selectable (AC priority or DC priority )
    • N+1 redundant configuration
    • Active current sharing technology
    • Pure Sine Wave, with THD<3%
    • Hot plug in technology
    • DC-AC isolation improving system security
    • Excellent dynamic responses
    • Max efficiency up to 89%
    • Complete protection

    Monitor


    Upon any failure, the ALARM will show out and a beep will be delivered in together with.

    • Long beep (important failure) : system no output
    • Beep every 1 sec : overload
    • Beep every 4 secs: DC fault, AC input fault, Inverter fault, Bypass fault, Communication fault, Switch X open.

    Inverter Module



    Structure


    Specification

    ModelTM251TM252TM253
    Electrical
    Nominal DC input24 or 48Vdc48VDC
    DC operating rangeRefer to 2.3 on Page 9
    Output power1Kva1.5Kva2Kva
    Wave formPure sine wave
    Power factor0.8
    Norminal output110Vac 115Vac 120Vac 127Vac 220Vac 230Vac 240Vac (±2%)220Vac 230Vac 240Vac (±2%)
    Output frequency50/60Hz ± 1%
    THD<3% liner load
    <5% non-liner load
    Crest factor3:1
    EfficiencyMax 85% / 87%
    Overload150% 10s
    125% 1min
    Dynamic response time< 20ms
    Others
    Operating Temp.Full load, -10℃ - 40℃
    Isolation1500Vrms
    SafetyEN60950-1
    EmmissionEN55022
    ImmunityEN55022
    ElectricalSafety & Environment
    ModelTM251,TM252,TM253Operating Temp.: -10C - 40C (de-rating above 40C)
    DC InputStorage Temp.: -40C - 85C
    Nominal Voltage24VDC, 48VDC, 110VDC, 220VDC, 240VDCIsolationAC–DC : 2000Vrms
    Operating rangeRefer to 2.3 on Page 9DC-ground : 2000Vrms
    AC OutputAC-ground : 2000Vrms
    Output power1KVA, 1.5KVA,2KVA
    Max power24VDC: 1KVA
    Others: 2KVA
    Wave formPure sine waveDisplay
    Power factor0.8
    Nominal output110/120VAC or 220/230/240VACLED IndicatorRunning
    Voltage variationMax ± 2%Failure
    Output frequency50/60Hz ± 0.1%Load Percentage
    THD<3% liner load
    <5% non-liner load
    Crest factor3:01
    EfficiencyMax 88%
    Overload150% 10secs
    125% 10mins
    Dynamic response time< 20ms
