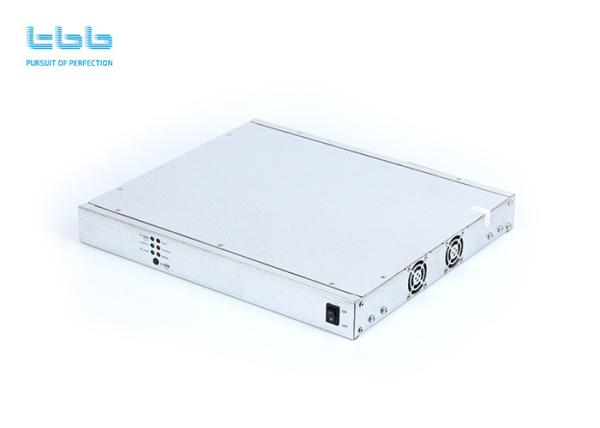

    Compact Light Pure Sine Wave Power Inverter 19"1U Size Subrack TP600S 1U

    Ask Lasest Price
    Brand Name : TBB
    Model Number : TP600S 1U
    Certification : CE,ISO9000
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 1-3days depends on batch order qty
    • Product Details
    • Company Profile

    Compact Light Pure Sine Wave Power Inverter 19"1U Size Subrack TP600S 1U

    TBB Power Pure Sine Wave Inverter Industrial Standalone Inverter High frequency type Compact light 19"1U size Subrack


    TBB TP600 series inverter could achieve a compact size of maximized power density.
    Combined with modern semiconductors and a patent pending control algorithm, TP600-1U inverter could achieve a compact size within the 19”1U height.


    The performance of TP600-1U of inverter is at top of the market with peak efficiency up to 90% and small harmonics on DC side and it can be interfaced with RS232 and RS485.

    Here are the Features;
    - 19”1U or 19”2U
    - High Frequency standby design with
    - Transfer time 5-8ms
    - Working mode selectable (AC priority or DC priority)
    - High Frequency design
    - DC/AC isolation improving system security
    - System parameters programmable
    - Complete protection
    - Thermal controlled fan
    - RS232 or RS485 communication port and Dry point
    - Voltage adjustable 230Vac (200-240) or 110Vac (100-120)
    - Front panel connection version available

    Control by keyboard and front screen, should include:

    • Real-time measurements of input and output values ​​(voltages,

    currents and frequencies).


    LED shows


    Specifications
    TP600M and TP600S (24VDC/48VDC models)

    TP600D and TP600E (110VDC/220VDC models)

    ModelTP605TP610
    Electrical
    DC input110Vdc or 220Vdc
    Dc input range.-17% ~ +25%
    AC Input
    AC input230Vac or 110Vac (-25%~+20%)230Vac (-25%~+20%)
    Frequency range±10%
    Output power500va1kva
    Wave formPure sine wave
    Power factor0.8
    Norminal output voltage230Vac or 110Vac230Vac
    Voltage variationMax ± 2%
    Output frequency50/60Hz ± 0.1Hz
    EfficiencyMax 90%
    THD<3% liner load
    <5% non-liner load
    Crest factor.3:1
    Overload125% 60secs
    110% 10mins
    Transfer time5-8ms
    Dynamic response time< 30ms
    LVD91.5Vdc or 183Vdc
    Display & Communication
    LED indicatorWorking mode, Fault info
    Communication InterfaceRS232 and RS485
    4xDry contact
    Safety & Enviroment
    Operating Temp.Full load, <-20℃> - 40℃
    Derating using, 40℃ - 60℃
    Isolation2000Vrms
    Mechanical
    Dimension (WxH)19"1U
    Depth319mm
    Weight4.0kgs/4.5kgs
    Coolingforced fan with thermal control
    EnclosureIP20
    Standard
    LVDEN60950-1
    EMCEN55022
