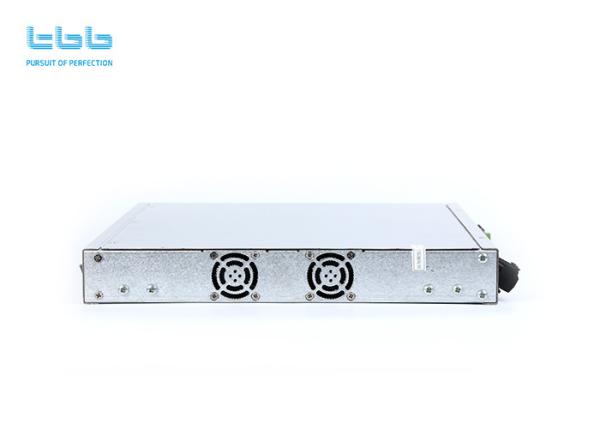

48Vdc input 1000Va 220Vac/50Hz Standalone Inverter

TBB TP600 series inverter could achieve a compact size of maximized power density. Here are the Features;

TP600-1U standalone inverter features an integrated utility bypass. With a dip switch, the inverter can be set into AC priority mode, of which power is always connected to the AC utility line and will switch to inverter power line when AC utility fails with transfer time less than 8ms.

The performance of TP600-1U of inverter is at top of the market with peak efficiency up to 90% and small harmonics on DC side and it can be interfaced with RS232 and RS485.

• Standalone design
• Working mode selectable (AC priority or DC priority) with 5-8ms transfer time
• Pure sine wave, THD<3%
• High Frequency design
• DC/AC isolation improving system security
• Available with DC input 24VDC, 48VDC,110VDC or 220VDC
• Voltage and Frequency adjustable by distributor within the specific range.
• Thermal controlled fan speed
• Max efficiency 90%
• User’s friendly LED display
• Complete protections with auto recovery
• Input reverse polarity protection
• RS232+RS485 and Dry point
• EMI/EMC
• Name definitions

Voltage setting range. (24VDC model as the sample,)

Led Shows

Specifications

TP600M and TP600S (24VDC/48VDC models)

TBB Power aimed to offer complete on board power solution for various kinds of vehicle and boat requiring extra and reliable power supply, such as ambulance, motor homes, caravan, service vehicle, military vehicles, and yacht, sailing boat etc.

Products supplied include control panel, on board power, battery management, distribution, storage battery and semi flexi solar panel. Till 2017, we have installed our products on over 35000 vehicles and boats. TBB Power has being widely accepted as a creative and dependable partner.

To assure the high and stable quality, TBB Power has implemented ISO9001 and IATF16949 management system within the company. All products carried have passed CE and some has gained E homologation.
