| Ask Lasest Price | |
| Brand Name : | TBB |
| Model Number : | cs4080s |
| Certification : | CE,ISO9000 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 3-7 working days, depending |

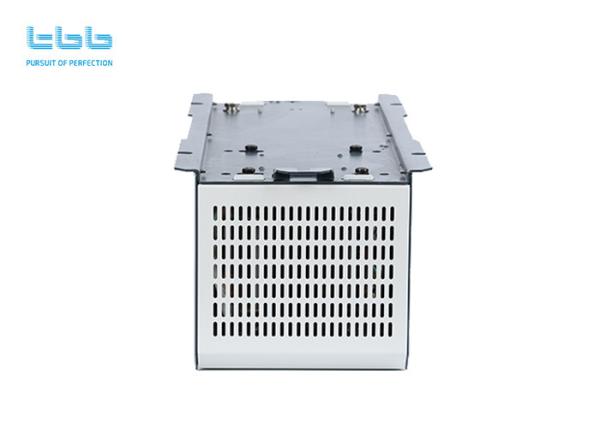

dc to ac power inverter charge combi 4kw 48VDC40A 230VAC/50HZ
cs4040s
Energier Essential bi-directional inverter can be used in multiple
applications.You can use it
to compose power backup system. Or, with a quick setting,you can
compose a simple solar
hybrid system either with grid or diesel-generators.
Features,
-Designed for tropical region with working temperature up to 60℃
-Compatible with majority of cheap generators in the market
-Can be applied for power backup and solar hybrid system
-Equalization charging program was available
-TBB premium II multi stage charging algorithm with built in
-Bi directional inverter with pure sine wave output
-Optional CM was available for automatic generator start
-Optional SNMP card for remote internet access
-High performance designed for all kinds of home appliances
-Designed to work with weak grid
Connecting the cable
Please make sure Energier essential bi-directional inverter is turned off before connection. Otherwise, high voltage could be
present.
Please double check battery voltage match the model you are going
to installed, the wrong battery could destroy equipment and is out
of warranty.
Please double confirm the polarity of DC input. Reverse polarity
could cause permanent damage on equipment and it is out of
warranty.
Specification
| Model No. | 12Vdc | CS0625L | CS1040L | CS2080L | ||||||
| 24Vdc | CS0615M | CS1020M | CS2040M | CS3060M | CS4080M | |||||
| 48Vdc | CS3030S | CS4040S | ||||||||
| INVERTER | ||||||||||
| Nominal Voltage | 12Vdc, 24Vdc, 48Vdc | |||||||||
| power 30mins @25℃ (W) | 600 | 1000 | 2000 | 3000 | 4000 | |||||
| Cont.power@25℃ (W) | 600 | 1000 | 1800 | 2500 | 3600 | |||||
| Cont.power@40℃ (W) | 600 | 1000 | 1500 | 2000 | 3000 | |||||
| Cos φ | 0.9-1 | |||||||||
| Surge | 300% | |||||||||
| Output voltage【1】 | 230VAC or 110VAC ± 2% | 230VAC ± 2% | ||||||||
| Output frequency | 50Hz or 60Hz ± 0.1% | |||||||||
| Efficiency (MAX.) | 12Vdc | 88% | ||||||||
| 24Vdc | 88% | |||||||||
| 48Vdc | 92% | |||||||||
Bypass | UPS mode | 184VAC-264VAC/92VAC-132VAC | 184VAC-264VAC | |||||||
| GEN mode | 160VAC-280VAC/80VAC-140VAC | 160VAC-280VAC | ||||||||
| Crest factor | 3:1 | |||||||||
| THD | <3% | |||||||||
| Zero load power | 17 | 22 | 27 | 36 | 62 | |||||
| Zero load power (power save mode) | 4 | 5 | 7 | 9 | 15 | |||||
| Output circuit breaker | 5A | 10A | 15A | 30A | 30A | |||||
| Overheat protection | auto disconnect | |||||||||
| Overload protection | auto disconnect | |||||||||
| shortcut protection | auto disconnect | |||||||||
| Charger | ||||||||||
| Nominal Output Voltage | 12Vdc, 24Vdc, 48Vdc | |||||||||
| Max Output current (A) - adjustable | 25/15 | 40/20 | 80/40 | 60/30 | 80/40 | |||||
| AC Input range | UPS mode | 184VAC - 264VAC/92VAC-132VAC | 184VAC - 264VAC | |||||||
| GEN mode | 160VAC - 280VAC/80VAC-140VAC | 160VAC - 280VAC | ||||||||
| Battery types | AGM / GEL / LFP / Flooded | |||||||||
| Absorption time | variable | |||||||||
| Temperature compensation | -4mV/℃/cell | |||||||||
| Charger circuit breaker | 5A | 10A | 15A | 30A | 30A | |||||
| Other Data | ||||||||||
| Transfer time | UPS mode | 15ms | ||||||||
| GEN mode | 2s | |||||||||
| Transfer switch | 40A | |||||||||
| Battery connector | M8 x 2 | |||||||||
| AC connector | Terminal block (M3 screw) | |||||||||
| Mechanical Data | ||||||||||
| Enclosure | Steel with powder paint | |||||||||
| Dimension (mm) | 444x186x135 | 512x216x176 | ||||||||
| Net Weight (kgs) | 9.5 | 14 | 16 | 18.5 | 22.5 | |||||
| Cooling | Forced fan | |||||||||
| Protection | IP20 | |||||||||
| Standard | ||||||||||
| Safety | EN60950-1 | |||||||||
| EMC | EN55022,EN55024 | |||||||||
| 【1】Output voltage: 220VAC/60Hz for Philippines | ||||||||||
|
|
