Smart lithium battery charger with active PFC, smaller and higher efficiency max 92%

TBB Brand BS TRIDENT Smart Battery Charger

Batteries will be permanently damaged by either overcharged or
remaining undercharged for any period of time. TRIDENT smart battery
charger will continuously deliver right charging at any circumstance with
built in battery management features which will be helpful in prolonging
your battery life expectancy.
Combined with up to date technology and our knowledge with batteries,
Trident smart battery charger was especially designed for mobile and
marine application, it was an ideal solution for your battery charging on
board.

Features :

• Active PFC featuring smaller and higher efficiency, max 92%.
• With multiple isolated outputs, including slave charger for starter battery.
• Automatically work as power supply or charger.
• Sophisticated TBB premium II multiple stages charging algorithm for lead acid battery.
• Adaptive charging algorithm for multiple battery chemical including AGM,GEL, etc.
• LFP (LiFePO4) charging algorithm is available.
• Automatic temperature compensation charging.
• Automatic voltage compensation charging.
• Programmable with monitor.
• Special silent design.
• Night mode through remote control.

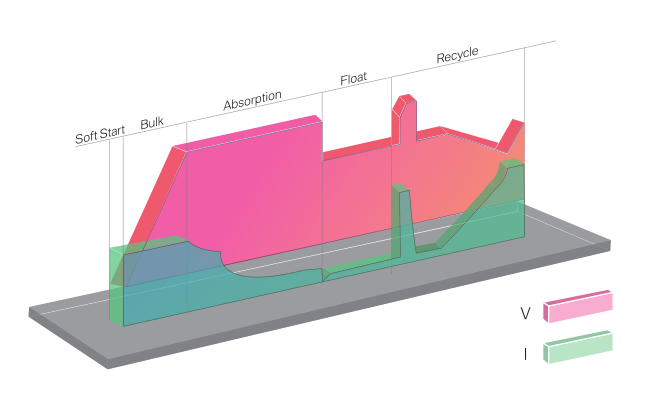

TBB premium II charging algorithm ;

Specs

Model: BS1240

Nominal output voltage(PS mode): 12.8V+/-0.256vdc

Max output current 40A

Nominal input voltage 165-265VAC,50/60HZ

Charge algorithms 5steps, soft start, bulk, absorption, float, recycle

Absorption voltage AGM: 13.5V, GEL:13.5V, LFP:13.5V, WET:13.7V

Floating voltage AGM14.4V, GEL: 14.1V, LFP:14.4V, WET:14.7V

Charging current 40A

Efficiency 88%

Input connector IEC socket

Output connector M4 Screw(16mm2)

Slave charger max 3A

Ripple noise less than 200mVp-p

Regulation accuracy less 2%

Coolling fan cooling

Protection

Working temperature ~20℃-+60℃

Short circuit: Shutdown output, automatically restart when short circuit is removed

Reverse polarity no charging

Battery over tem shutdown the charger

Standards

LVD EN60355

EMC EN55014,EN61000

Structure

Out case alluminum+plastic

Dimension 249*165*74mm

Weight 2.00KG

IP class IP22

iNSULATION RESISTANCE more than 50MΩ

Dielectric strength I/P-O/P:3.0kv,I/P-PG:1.5kv, o/p-PG:0.5KV

TBB Power aimed to offer complete on board power solution for various kinds of vehicle and boat requiring extra and reliable power supply, such as ambulance, motor homes, caravan, service vehicle, military vehicles, and yacht, sailing boat etc.

Products supplied include control panel, on board power, battery management, distribution, storage battery and semi flexi solar panel. Till 2017, we have installed our products on over 35000 vehicles and boats. TBB Power has being widely accepted as a creative and dependable partner.

To assure the high and stable quality, TBB Power has implemented ISO9001 and IATF16949 management system within the company. All products carried have passed CE and some has gained E homologation.
