High efficiency MPPT solar charger controller 150V120A/150V80A

MPPT Charger Controller

Solar Mate is a solar charge controller with built in Maximum
Power Point Tracking (MPPT) technology, which enables
them to increase the output from a solar photovoltaic (PV)
array by as much as 30% compared with non-MPPT designs.
Solar Mate can optimize the PV’s output and eliminate the
fluctuation due to shading or temperature variables. It is a
multi-voltage MPPT with built in sophisticated battery
charging algorithm for both lead acid battery or lithium-ion
battery, of which could support a wide variety of system
designs. Meanwhile, the data management with 365 days
of history record can tell user actual performance of its system.
Thanks to its self cooling design, it is suitable for most rugged
environment with dust or bugs. All range products can
operate at their full rating in ambient temperatures as high
as 40°C.

Features:

• High dynamic MPPT efficiency up to 99%
• High efficiency up to 98%, and European weighted efficiency up to 97.3%
• Up to 6600W of charging power at 40°C, and power de-rating to 50% when temperature reaches 60°C
• Excellent performance at sunrise and low solar insulation levels
• Wide MPPT operating voltage range
• Parallel function, up to 8 units can operate in parallel
• Self cooling design for high reliability
• Built in TBB premium II battery charging algorithm for lead acid battery
• Support positive grounding
• Low self consumption
• Data logging 365 days
• Communication : Auxiliary contact, RS485 support T-bus

Structure

Specifications

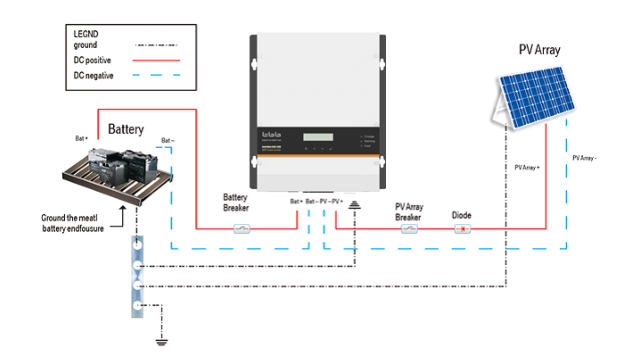

Wiring diagram of Solar Mate MPPC charger controller
