| Ask Lasest Price | |
| Brand Name : | TBB |
| Model Number : | IH1500L/IH2000L |
| Certification : | E-mark CISPR25;ISO7637-2 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 5-30 days based on order qty |
High frequency DC to AC power inverter suitable for caravan, city car, camping car
eRAY pure sine wave inverter
eRAY inverter could supply a steady pure sine wave AC to various
load on board,
such as coffee machine, microwave, hairdryer or sensitive
electronics. It could bring
home comfort and convenience for your life or work on board, either
motor home or
utility vehicle.t delivers a vast amount of energy yet takes up
very little space!
Features

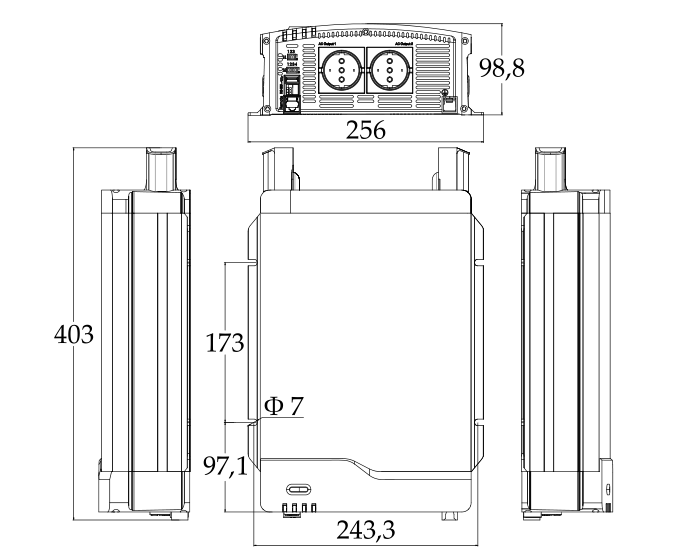

Product Drawing
Specifications
| Model No. | IH1500L | IH2000L | |
| DC input | |||
| Nominal voltage | 12VDC | ||
| Voltage range | 10.5~16VDC | ||
| Input under-voltage protection | 10.0±0.5VDC | ||
| Input under-voltage alarm | 10.5±0.5VDC | ||
| Input under-voltage recovery | 12.6±0.3VDC | ||
| Input over-voltage protection | 16.5±0.5VDC | ||
| No load current @12VDC | < = 1.1A | < = 1.5A | |
| Power saving mode @12VDC | < = 0.3A | < = 0.3A | |
| Current when power off | < = 3mA | < = 3mA | |
| AC output | |||
| Continuous output power @35℃ | 1500W | 2000W | |
| Maximum output power (1min) | 1530W-1670W | 2100W-2200W | |
| Surge power | 4500W | 6000W | |
| Output voltage | 230Vac± 3% , 220/230/240 DIP swtich Settable | ||
| Output frequency | 50/60±0.5Hz DIP swtich Settable | ||
| Output waveform | Pure sine wave | ||
| Total harmonic distortion | <3% @ Nominal load | ||
| Short circuit protection | <5s,auto-restart | ||
| Efficiency (Max.) | 90% | ||
| DC output | |||
| Output voltage | 5 ± 0.25VDC | ||
| Maximum output current | 2A | ||
| Protection | |||
| Input protection | Over / under voltage protection, Reverse polarity (interner fuse) | ||
| AC output protection | Over load , Short circuit | ||
| Others | Over temperature | ||
| Other Data | |||
| Recommended Battery cable | #1 (35mm2) | #1/0 (50mm2) | |
| AC output connector | Sockets | ||
| DC output connector | USB socket 1 | ||
| Remote LCD panel | Optional ,RJ45 port,4m cable | ||
| Communication | RS485 | ||
| Enclosure | Aluminum | ||
| Dimension (mm) (max) | 351*240*110 | 351*240*110 | |
| Net weight (KGs) | 4.3KGS | 4.5KGS | |
| Cooling | Temperature and load controlled Fan | ||
| Noise | <55dB | ||
| Protection | IP20 | ||
| Safety & EMC | |||
| Safety | EN60950-1 | ||
| EMC | EN61000-4-2 , 3 , 4 , 5 , 6 , 8 ,11; EN61000-3-2, -3-3 ; EN55022 Class B; EN55024; | ||
| E-mark | CISPR25; ISO7637-2 | ||
| Environment | |||
| Operating Ambient Temperature | -20 to 40°C | ||
| Storage Temperature Range | -30 to 70°C | ||
| Storage humidity | 10~95% RH, | ||
Wiring Recommendation
Please find the following minimum wire size 50mm2. In case of DC cable longer than 3m,
please increase the cross section of cable to reduce the loss.

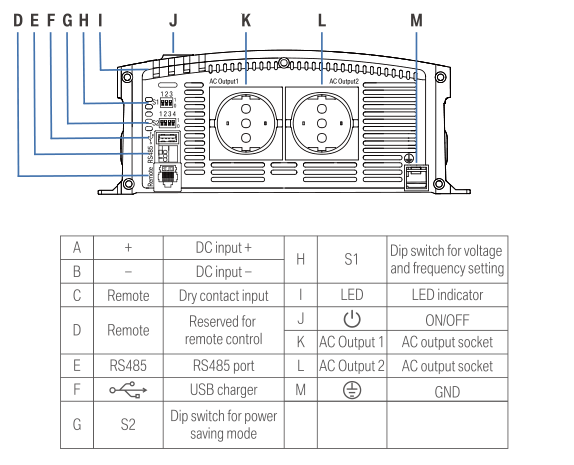

Front Panel
|
|
