| Brand Name : | TBB |
| Model Number : | BS1240 |
| Certification : | LVD-EN60335-1,EN60335-2-29; EMCEN55014,EN61000 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 5-30 days based on order qty |
AGM,battery BS1240 converter charger automatice voltage compensation charging
TBB TRIDENT series Smart battery charger on board charging for mobile marine application
Camper Van 12V battery charger 10A 25A 40A Smart compact design
Battery temperature is a key factory in correct charging, the charging formula must be adjusted( automatically and in real time) according to the actual battery temperature to ensure that battery are fully charged but ont overcharged or undercharged. All charging voltages recommended by battery manufacture are in fac only applied at 20 ℃ - 25 ℃ . The bat temperature and voltage sensor supplied with BS charge measures the temperature of battery and automatically makes adjustments at reas time to properly charge your batteires at compensation reate of -4mv/℃ /cell. In case of battery tempearture sensor was not present , BS charge will use 25℃ as default setting.
User‐friendly special silent design. The fan of charger will stop
working after the charging
current drop to small amount for a period of them. And it will also
automatic turn to work
condition if inner temperature increased
Features :

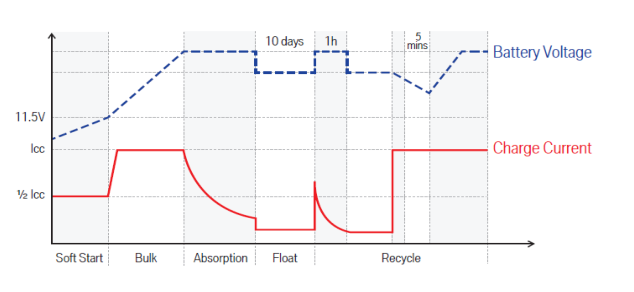

TBB premium II multi stage adaptive charging algorithm for lead
acid battery
Fitted with multistage charging algorithm
(bulk‐absorption‐float‐recycle), BS battery charger
is designed to charge battery quickly and fully. Microprocessor
controlled charging algorithm
with variable absorption charging timer guarantee the optional
charging for batteries of
different discharged state.
Float charging and Recycle charging program guarantee your battery
could get proper
maintenance in case of long time connected
Specs
| Model | BS1210 | BS1225 | BS1240 | BS1225-3 | BS1240-3 |
| Electrical | |||||
| Output voltage (PS mode) (Vdc) | 12.8V±0.256Vdc | ||||
| Max Output current (A) | 10 | 25 | 40 | 25 | 40 |
| Nominal input voltage (Vac) | 85-265VAC,50/60Hz | 165-265VAC,50/60Hz | |||
| Charge algorithms | 5 steps. soft start, bulk, absorption, float, recycle | ||||
| Temperature compensation | Automatically | ||||
| Absorption voltage(Vdc) | AGM:13.5V,GEL:13.5V,LFP:13.5V,WET:13.7V | ||||
| Floating voltage (Vdc) | AGM:14.4V,GEL:14.1V,LFP:14.4V,WET:14.7V | ||||
| Charging current (A) | 10 | 25 | 40 | 25 | 40 |
| Min battery voltage (Vdc) | 1 | 2 | |||
| Efficiency | 88% | ||||
| Input connector | Cable of 1.5 meter with CEE 7/7 plug | IEC socket | |||
| Output connector | Fixed cable,2.5mm², 1 meter | M4 Screw (16mm²) | |||
| Output | 1 | 1+1 | |||
| Ripple noise | ≤200mVp-p | ||||
| Regulation Accuracy | ≤2% | ||||
| Cooling | Self cooling | Fan cooling | |||
| Working Temperature | -20℃ -- +60℃ | ||||
| Protection | |||||
| Short circuit | Shutdown output, automatically restart when short circuit is removed | ||||
| Reverse polarity | No charging | ||||
| Charger over temp | Shut down the charger | ||||
| Battery over temp | Shut down the charger | ||||
| Standards | |||||
| LVD | EN60335-1,EN60335-2-29 | ||||
| EMC | EN55014-1,EN55014-2,EN61000-3-2,EN61000-3-3 | ||||
| Structure | |||||
| Out case | Aluminum+plastic | ||||
| Dimension | 175*114*53mm | 249*165*74mm | 249*165*74mm | ||
| Weight | 1.0KG | 1.6KG | 1.6KG | ||
| IP class | IP20 | IP23 | |||
| Insulation Resistance | ≥50MΩ | ||||
| Dielectric strength | I/P-O/P:3.0KV,I/P-PG:1.5KV,O/P-PG:0.5KV | ||||
Installation
BS Charger can be installed on a horizontal surface or vertically on a wall. Please see following instruction;
|
|
