| Ask Lasest Price | |
| Brand Name : | TBB |
| Model Number : | CK4.0S/CK6.0S/CK8.0S |
| Certification : | CE,ISO9000 |
| Price : | Negotiable |
| Payment Terms : | T/T |
Specification
| Model | CK3.0M | CK5.0M | CK 4.0S | CK 6.0S | CK 8.0S |
| Power Assist | Yes | ||||
| Feed-in to grid | Yes | ||||
| AC inputs | Input voltage range:145~265 VAC Input frequency:42~65Hz | ||||
| AC input Current (transfer switch) (A) | 40 | ||||
| Inverter | |||||
| Nominal battery voltage (V) | 24 | 48 | |||
| Input voltage range (V) | 21-32 | 42~60 | |||
| Output | Output voltage: 220~240 VAC ± 2%, Frequency: 50Hz/60Hz ± 0.05% | ||||
| Harmonic distortion | <2% | ||||
| Load Power factor | 1.0 | ||||
| Cont. output power at 25°C (W) | 2500 | 4500 | 3000 | 4500 | 6000 |
| Peak power (30min) (W) | 3000 | 5000 | 4000 | 6000 | 8000 |
| Peak power (5 sec) (W) | 5000 | 8000 | 6000 | 9000 | 12000 |
| Cont. output power at 40°C (W) | 2000 | 3600 | 2400 | 3600 | 4800 |
| Maximum efficiency | 93% | 96% | |||
| Zero load power (W) | 18 | 23 | 17 | 20 | 26 |
| Charger | |||||
| Charge voltage 'absorption' (V) | 28.8 | 57.6 | |||
| Charge voltage 'float' (V) | 27.6 | 55.2 | |||
| Battery types | AGM / GEL / OPZV / Li-ion | ||||
| AC charge current (A) | 100 | 150 | 50 | 75 | 100 |
| Temperature compensation | Yes | ||||
| General data | |||||
| Main Output (AC Out1) Current (A) | 40 | ||||
| Transfer time | <2ms (<15ms in Weak Grid Mode) | ||||
| Remote on-off | Yes | ||||
| Programmable relay | 2x | ||||
| Protection | a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) input voltage out of range g) input voltage ripple too high | ||||
| CAN Bus communication port | For parallel and three phase operation, remote monitoring and system integration | ||||
| General purpose com. Port | RS485,Bluetooth,GPRS,WLAN | ||||
| Operating temperature range | -20˚C to 60˚C | ||||
| Relative humidity in operation | 95% without condensation | ||||
| Altitude (m) | 2000 | ||||
| Mechanical Data | |||||
| Dimension (mm) | 530*285*185 | ||||
| Net Weight (KG) | 32 | 36 | 30 | 35 | 40 |
| Cooling | Forced fan | ||||
| Protection index | IP20 | ||||
| Standards | |||||
| Satety | EN60950-1,EN-IEC 62109-1 | ||||
| EMC | EN61000-6-2,EN61000-6-4, | ||||

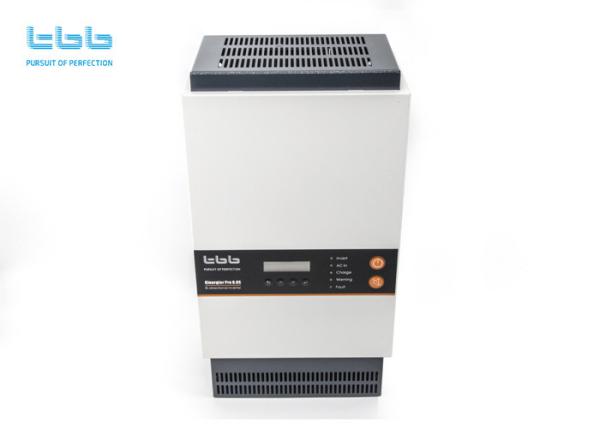

3kw 4kw Power Inverters Compatible with All Cheap Generators
Kinergier Pro series
Kinergier Pro is the new generation bi-directional inverter
designed for various types of off grid systems including AC
coupling system, DC coupling system and generator hybrid
system. It can provide UPS class switching speed and with
capability to support parallel as well as composing three
phase system.
Energier Apollo is a powerful ALL-IN-ONE inverter integrates
multiple functions, including a high-performance inverter, a
powerful battery charger, a MPPT or PWM charge controller, a
high-speed automatic transfer switch and two outputs for load
management. It can be used in multiple applications. With a simple
setting, you can compose a power backup or solar off grid system.
Its distinguishing surge capability makes it capable of powering
mostly demanding appliances, such as fridge, water pump and
air-conditioner. In the meantime, it can charge from the majority
of cheap generators in the local market.
With the function of AEA (automatic energy allocation), it
can be used to work with a limited AC source such as
generator or limited grid. Kinergier Pro can automatically
adjust its charging current avoiding grid or generator to be
overloaded. In case of temporary peak power appears, it
can work as the supplement source to generator or grid.
Features:
Structure
|
|
